If you want to find out more about

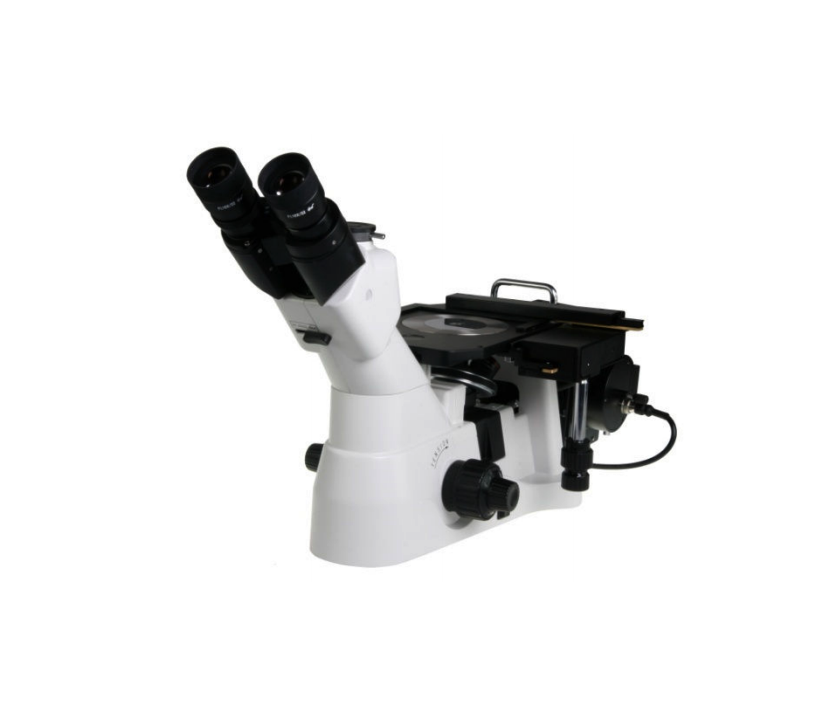

Euromex Inverted Microscope Inverso IM.2653-PLM

Talk to us at :

(65) 6749 9697

sales@lfc.com.sg

Euromex Inverted Microscope Inverso IM.2653-PLM is the finest microscope for observation of specimen which requires long working IOS plan achromatic objectives. This inverted microscope is designed with 45° inclined tubes and trinocular slot for digital scope with extended low and high positions for eyepieces and a photo port. The classical design ensure user friendliness and comfort within form factor of 677 x 231 x 184mm which also sturdy and versatile for observing heavier specimen. Depends on your application and budget, you can also equip this magnificent microscope with accesories such as photo adapter of 0.67x magnification relay lens for 2/3 inch C/CS mount camera or simply order it with blue or green colored filter lights. The reliability and versatility of Euromex Inverted Microscope Inverso IM.2653-PLM is highly regarded for material science application as in petrology, metallography, metallurgy and many more.   Euromex Inverted Microscope Oxion Inverso IM.2653-PLM Features: Trinocular with 45° inclined tubes with extended low and high positions for eyepieces and a photo port, Trinocular head split bino/trino 100:0 or 80:20.One diopter adjustment. Bright Field and Polarization with long working IOS plan achromatic objectives of 5x/10x/20x/S50x and S100x objectives Interpupillary distance of 54 to 75 mm. Trinocular head split bino/trino 100:0 or 80:20 Nosepiece is revolving quintuple nosepiece on ball-bearings Objectives are infinity color corrected Plan 5x/0.14, 10x/0.25, 20x/0.40 and Semi-Apochromatic 50x/0.55 IOS objective. No cover glass correction. All optical parts are anti-fungus treated. Semi-Apochromatic 100x/0.80 IOS objective also available as option Large stage 250 x 230 mm with coaxial mechanical 120 x 78 mm X-Y stage. Delivered with metallic insert with 12 and 25 mm diameter hole Focusing adjustment  Coaxial 9 mm coarse and 200 μm fine adjustments, 2 μm precision. Friction adjustment Reflected illumination with adjustable intensity of 12V / 50 W halogen with internal 90-240 V power supply

Euromex Inverted Microscope Inverso IM.2653-PLM is the finest microscope for observation of specimen which requires long working IOS plan achromatic objectives. This inverted microscope is designed with 45° inclined tubes and trinocular slot for digital scope with extended low and high positions for eyepieces and a photo port. The classical design ensure user friendliness and comfort within form factor of 677 x 231 x 184mm which also sturdy and versatile for observing heavier specimen.

Depends on your application and budget, you can also equip this magnificent microscope with accesories such as photo adapter of 0.67x magnification relay lens for 2/3 inch C/CS mount camera or simply order it with blue or green colored filter lights. The reliability and versatility of Euromex Inverted Microscope Inverso IM.2653-PLM is highly regarded for material science application as in petrology, metallography, metallurgy and many more.



Euromex Inverted Microscope Oxion Inverso IM.2653-PLM Features:

  • Trinocular with 45° inclined tubes with extended low and high positions for eyepieces and a photo port, Trinocular head split bino/trino 100:0 or 80:20.One diopter adjustment.
  • Bright Field and Polarization with long working IOS plan achromatic objectives of 5x/10x/20x/S50x and S100x objectives
  • Interpupillary distance of 54 to 75 mm. Trinocular head split bino/trino 100:0 or 80:20
  • Nosepiece is revolving quintuple nosepiece on ball-bearings
  • Objectives are infinity color corrected Plan 5x/0.14, 10x/0.25, 20x/0.40 and Semi-Apochromatic 50x/0.55 IOS objective. No cover glass correction.
  • All optical parts are anti-fungus treated.
  • Semi-Apochromatic 100x/0.80 IOS objective also available as option
  • Large stage 250 x 230 mm with coaxial mechanical 120 x 78 mm X-Y stage.
  • Delivered with metallic insert with 12 and 25 mm diameter hole
  • Focusing adjustment  Coaxial 9 mm coarse and 200 μm fine adjustments, 2 μm precision. Friction adjustment
  • Reflected illumination with adjustable intensity of 12V / 50 W halogen with internal 90-240 V power supply

TECHNICAL SPECIFICATION

Euromex Inverted Microscope Inverso IM.2653-PLM Ordering Guide:


Request a Quote

Request A Quote

Please complete the below form to receive further information.

Euromex Inverted Microscope Inverso IM.2653-PLM Euromex Inverted Microscope Inverso IM.2653-PLM Product description:

Euromex Inverted Microscope Inverso IM.2653-PLM is the finest microscope for observation of specimen which requires long working IOS plan achromatic objectives. This inverted microscope is designed with 45° inclined tubes and trinocular slot for digital scope with extended low and high positions for eyepieces and a photo port. The classical design ensure user friendliness and comfort within form factor of 677 x 231 x 184mm which also sturdy and versatile for observing heavier specimen.

Depends on your application and budget, you can also equip this magnificent microscope with accesories such as photo adapter of 0.67x magnification relay lens for 2/3 inch C/CS mount camera or simply order it with blue or green colored filter lights. The reliability and versatility of Euromex Inverted Microscope Inverso IM.2653-PLM is highly regarded for material science application as in petrology, metallography, metallurgy and many more.



Euromex Inverted Microscope Oxion Inverso IM.2653-PLM Features:
