Inspex IPX-800 has been devised by Bowers to meet the industrial demands of force gauges equipment that is versatile on testing multiple types of the workpiece and practical. Inspex IPX-800 is integrated with load cell and external load cell. In addition, you can also purchase the testing unit separately or with digital or manual stage. Inspex IPX-800 Digital Force Gauge features: High accuracy +/- 0.5% of full scale Peak hold function Tolerance setting Calculation of average values Lbf, Kgf and Newton units RS232 digital output Clear LCD display showing all functions and parameters Supplied with standard accessories and software Optional stands available Inspex IPX-800 Standard Delivery Main unit AC adaptor 5 measuring tips 4 M3 x 8 mounting screws CD-ROM with PC software Extension shaft inspex certificate Instruction manual Inspex IPX-800 Optional accessories Various stands UKAS calibration certificate RS232 serial cable

Inspex IPX-800 has been devised by Bowers to meet the industrial demands of force gauges equipment that is versatile on testing multiple types of the workpiece and practical. Inspex IPX-800 is integrated with load cell and external load cell. In addition, you can also purchase the testing unit separately or with digital or manual stage.

Inspex IPX-800 Digital Force Gauge features:

  • High accuracy +/- 0.5% of full scale
  • Peak hold function
  • Tolerance setting
  • Calculation of average values
  • Lbf, Kgf and Newton units
  • RS232 digital output
  • Clear LCD display showing all functions and parameters
  • Supplied with standard accessories and software
  • Optional stands available

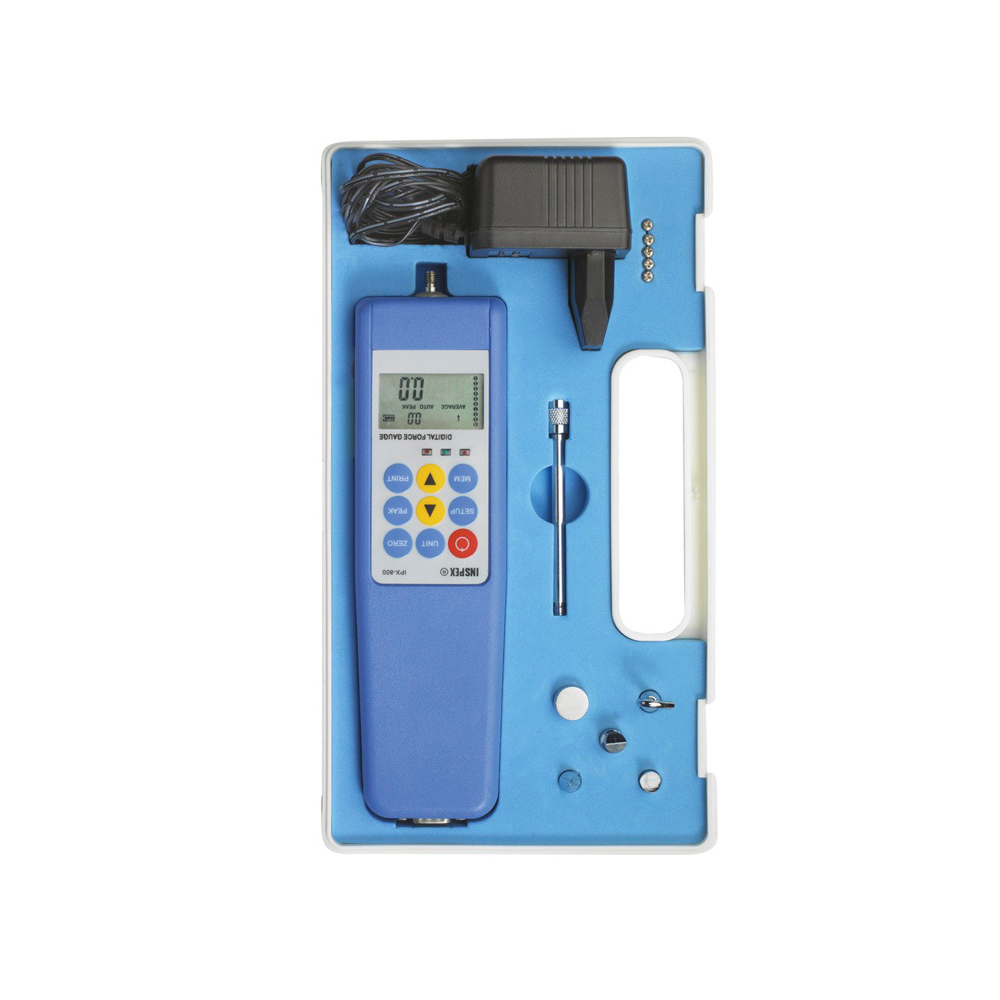

    Inspex IPX-800 Standard Delivery

  • Main unit
  • AC adaptor
  • 5 measuring tips
  • 4 M3 x 8 mounting screws
  • CD-ROM with PC software
  • Extension shaft
  • inspex certificate
  • Instruction manual

    Inspex IPX-800 Optional accessories

  • Various stands
  • UKAS calibration certificate
  • RS232 serial cable

TECHNICAL SPECIFICATION

Inspex IPX-800 Digital Force Gauge Technical Spec:


Measurement unit Lbf or kgf or Newtons
Accuracy +/-0.5% of full scale
Resolution Depending on range - see table below
Output RS232
Memory 10 readings to calculate average
Power Rechargeable Ni-Hi batteries
Battery life 20 hours of use
Operating temperature 20ºC +/- 10ºC
Dimensions 225mm x 65mm x 35mm
Weight of main unit 650g


Inspex IPX-800 Digital Force Gauge Application Guide:




Code No.DescriptionMaximum Scale NewtonsMinimum Scale Newtons
13-03652 Stand (Motorised)
13-03650 Stand (Mechanical)
13-03618 SH-500 500 0.1
13-03617 SH-200 200 0.1
13-03616 SH-100 100 0.05
13-03615 SH-50 50 0.01
13-03614 SH-20 20 0.01
13-03613 SH-10 10 0.005
13-03612 SH-5 5 0.001
13-03611 SH-2 2 0.001
