Hawkeye Pro Slim Prism Borescopes: Spectacular Image Quality at an Affordable Price Hawkeye Pro Slim Prism Borescopes 0.165” (4.20 mm) available in 30° and 70° Prism DOV (90° available by special order, call for details), the clarity and contrast of Hawkeye Pro Slim Prism Borescopes provide spectacular image quality at a fraction of the cost of German-made prism scopes. With a slim diameter of only 4.2 mm (0.165”), Hawkeye Pro Slim Prism Borescopes make it easy to inspect even the smallest machine metal parts. And with the included SuperNOVA™ Light, rechargeable batteries, and rugged carrying case, you'll have everything you need to get started.

Hawkeye Pro Slim Prism Borescopes: Spectacular Image Quality at an Affordable Price

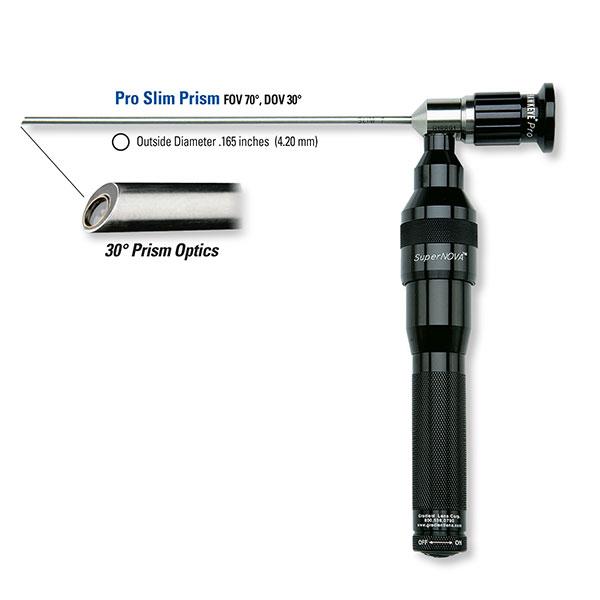

Hawkeye Pro Slim Prism Borescopes 0.165” (4.20 mm) available in 30° and 70° Prism DOV (90° available by special order, call for details), the clarity and contrast of Hawkeye Pro Slim Prism Borescopes provide spectacular image quality at a fraction of the cost of German-made prism scopes.

With a slim diameter of only 4.2 mm (0.165”), Hawkeye Pro Slim Prism Borescopes make it easy to inspect even the smallest machine metal parts. And with the included SuperNOVA™ Light, rechargeable batteries, and rugged carrying case, you'll have everything you need to get started.

TECHNICAL SPECIFICATION

Hawkeye® Pro Slim Prism Specifications

Optics
Field-of-View 70°
Direction-of-View 30° and 70° Prism
Relay Optics e2 endoGRINs® Glass Relay Lenses
Magnification Borescopes are not fixed magnification like microscopes.
Mechanical / Construction
Length 7”, 12”, 17”
Diameter Scope: .165" (4.20 mm)
Lightpost LightConcentrator™ ACMI configuration, Diameter 0.300"
Eyecup Standard DIN, 32 mm diameter, with independent focusing ring
Materials
Tube 304 Stainless Steel
All Machined Stainless Steel 303 Stainless Steel
Eyecup and Focusing Ring Aluminum, black anodized
Front Window AR coated optical Glass
Illumination Fiber Optical Glass
Relay Optics e2 endoGRINs® gradient index glass lenses
Environmental
Temperature Range Official - 20° to 120° C.
Note 1 Hawkeye Pro Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
Note 2 These scope were not designed to operate below 0°. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
Pressure All Hawkeye borescopes we designed only for use at ambient pressure, however, we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr. As the scopes were not specifically designed for this, the operator does so at his own risk.
Chemical Resistance All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc. Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.
