ILIX 6643 Tapping Bit With Internal Cooling DIN 371

Talk to us at :

(65) 6749 9697

ILIX is the specialist for holemaking and high-precision cutting tools. Ilix offers a wide product range of high-quality, precise and effective products for different tasks; from dry machining with high performances twist drills (VHM) to thread production or reaming even in hundredth increment sizes. Ilix provides highest precision for today’s most demanding applications.

ILIX 6643 Tapping Bit With Internal Cooling is made of HSS-Co for various Machine Tap ALU Type. Suitable for either machined or manual tappings on light to medium application. ILIX 6643 Tapping Bit is manufactured to adhere with Metric coarse ISO DIN 13 DIN 371

Ilix 6643 Tapping Bit Application areas :

Al-alloys forming long chips
Electrolytic copper
Zinc alooys
Soft plastics
PDF catalog can be downloaded here (50 MB)

Overview

Customer value

ILIX is synonymous with drill and holemaking specialist, a division of Angelo Ghezzi group Italy. ILIX strong reputation for quality cutting tool is supported with over 65K items which are constantly produced at every DIN and ISO standard on various type of coating suitable for your faster rate of procurement.

Built to last

Since 1895, LIX Präzisionswerkzeuge GmbH manufactures cutting bits on twist drills, taps countersinks and reamers. ILIX's innovative solution answer the demands of fabricators with clients of world's most demanding requirements

TECHNICAL SPECIFICATION

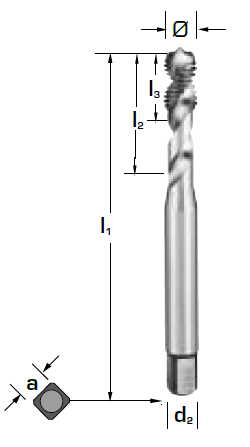

ILIX 6643 Machine taps with reinforced shank for ISO metric coarse thread as per DIN 13

Ø mm	Pitch	Tap drill	l1	l2	l3	d2 h9	a h12	6643
M 2	0.4	1.6	45	8	4	2.8	2.1	•
M 2.2	0.45	1.75	45	9	4	2.8	2.1	•
M 2.3	0.4	1.9	45	9	4	2.8	2.1	•
M 2.5	0.45	2.05	50	9	4	2.8	2.1	•
M 2.6	0.45	2.1	50	9	4	2.8	2.1	•
M 3	0.5	2.5	56	11	5	3.5	2.7	•
M 3.5	0.6	2.9	56	13	6	4	3	•
M 4	0.7	3.3	63	13	7	4.5	3.4	•
M 5	0.8	4.2	70	16	8	6	4.9	•
M 6	1	5	80	19	10	6	4.9	•
M 7	1	6	80	19	10	7	5.5	•
M 8	1.25	6.8	90	22	12	8	6.2	•
M 10	1.5	8.5	100	24	14	10	8	•
