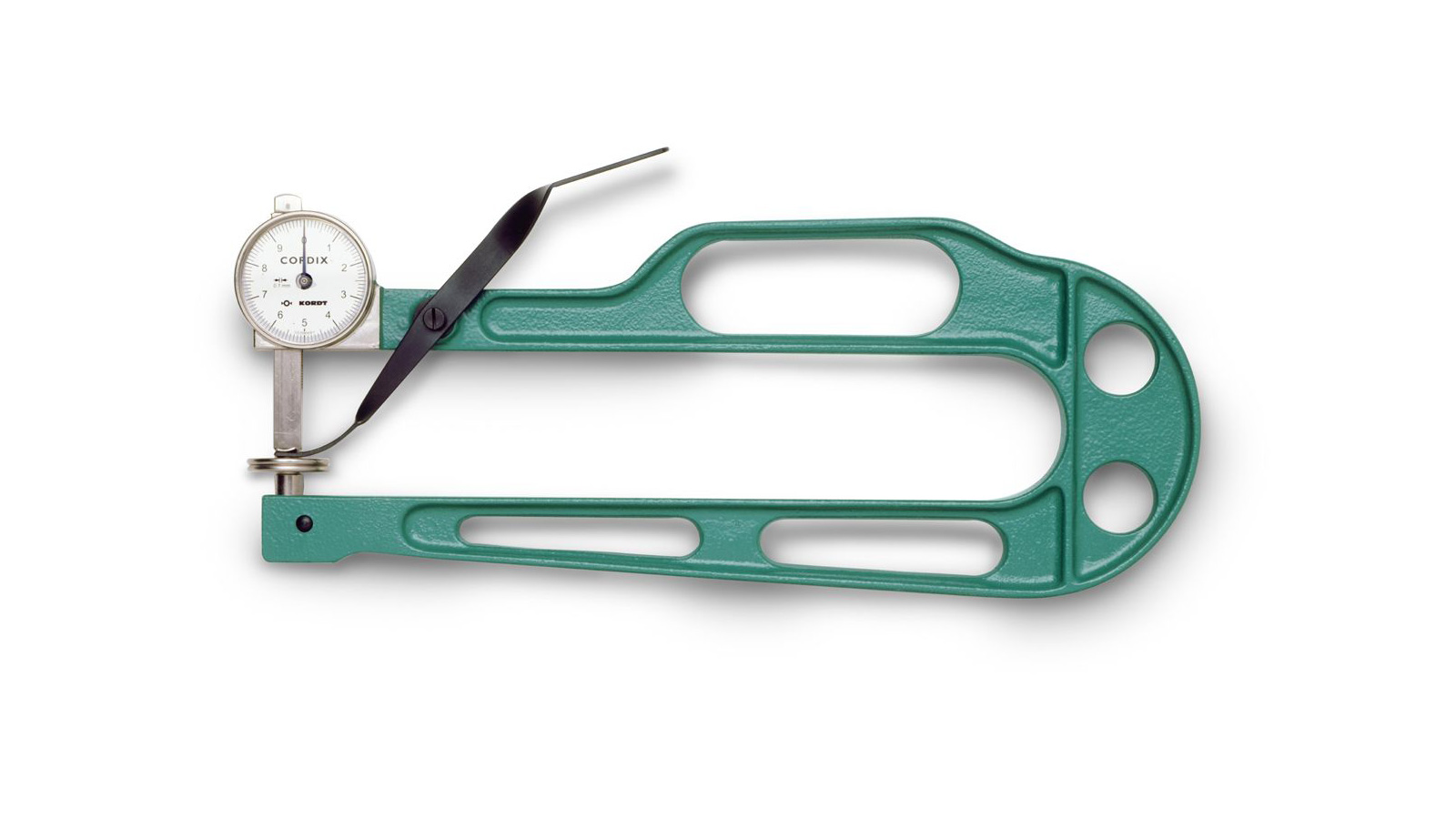

Kordt Thickness Gauge Cordix 3000 Series is a rapid-acting thickness gauge that has been calibrated with 0.1 mm intervals. Each of these distance intervals are equivalent to 1 mm. One complete rotation of the pointer is equivalent to 10 mm. Different measuring ranges, measuring depths and measuring anvils make the CORDIX Quick-Acting Thickness Gauges to universal usable measuring instruments. The rigid frame is made out of a special light metal alloy and supplies an easy handling. Even longer usage appears not fartique. Measuring probe and dial gauge housing are resistant against corrosion. The right angular measuring bar of the SERIE 3000  is insensitive against shock and provides a special protection against torsion. Features : Various measuring ranges Measuring depth up to 600 mm Robust right-angled measuring bar with 10 mm division Anvil parallelism and indicator position adjustable Lifter from a measuring depth of 150 mm onwards Stable stand type 3022 opitional Dial gauge, dirt-resistant Light metal frame For special applications we produce anvils according the customer's requirement Benefits : Mesuring thickness without damaging the surface of many instrument Useful for selecting complementary papers and for leafcasting, when the thickness of the original paper has to be determined in order to compute the amount of fibres required. Applications in need of exceptionally high accuracy

Kordt Thickness Gauge Cordix 3000 Series is a rapid-acting thickness gauge that has been calibrated with 0.1 mm intervals. Each of these distance intervals are equivalent to 1 mm. One complete rotation of the pointer is equivalent to 10 mm. Different measuring ranges, measuring depths and measuring anvils make the CORDIX Quick-Acting Thickness Gauges to universal usable measuring instruments. The rigid frame is made out of a special light metal alloy and supplies an easy handling. Even longer usage appears not fartique. Measuring probe and dial gauge housing are resistant against corrosion. The right angular measuring bar of the SERIE 3000  is insensitive against shock and provides a special protection against torsion.

Features :

• Various measuring ranges

• Measuring depth up to 600 mm

• Robust right-angled measuring bar with 10 mm division

• Anvil parallelism and indicator position adjustable

• Lifter from a measuring depth of 150 mm onwards

• Stable stand type 3022 opitional

• Dial gauge, dirt-resistant

• Light metal frame

• For special applications we produce anvils according the customer's requirement

Benefits :

• Mesuring thickness without damaging the surface of many instrument

• Useful for selecting complementary papers and for leafcasting, when the thickness of the original paper has to be determined in order to compute the amount of fibres required.

• Applications in need of exceptionally high accuracy

TECHNICAL SPECIFICATION

Kordt Thickness Gauge Cordix 3000 seriesStandard Ordering Guide:

SERIE 3000: 1/10 mm	type	measuring range [B] = mm	measuring depth [T] = mm	shape a	shape b	shape c	shape d	shape e	shape f	shape h	shape i
	3011	0 - 10	15		Ø6,5
	3002	0 - 25	30
	3006	0 - 30	50
	3050	0 - 30	50
	3008	0 - 30	150
	3009	0 - 30	275
	3001	0 - 30	420
	3010	0 - 30	600
	3003	0 - 50	50
	3060	0 - 50	50
	3019	0 - 50	275
	3063	30 - 80	50
SERIE 3100: 1/100 mm analog	type	measuring range [B] = mm	measuring depth [T] = mm	shape a	shape b	shape c	shape d
	3104	0 - 10	50
	3106	0 - 10	50
	3108	0 - 10	150
	3109	0 - 10	275
SERIE 3200: 1/100 mm digital	type	measuring range [B] = mm	measuring depth [T] = mm	shape a	shape b	shape c	shape d
	3204	0 - 10	50
	3206	0 - 10	50
	3208	0 - 10	150
	3209	0 - 10	275
