If you want to find out more about

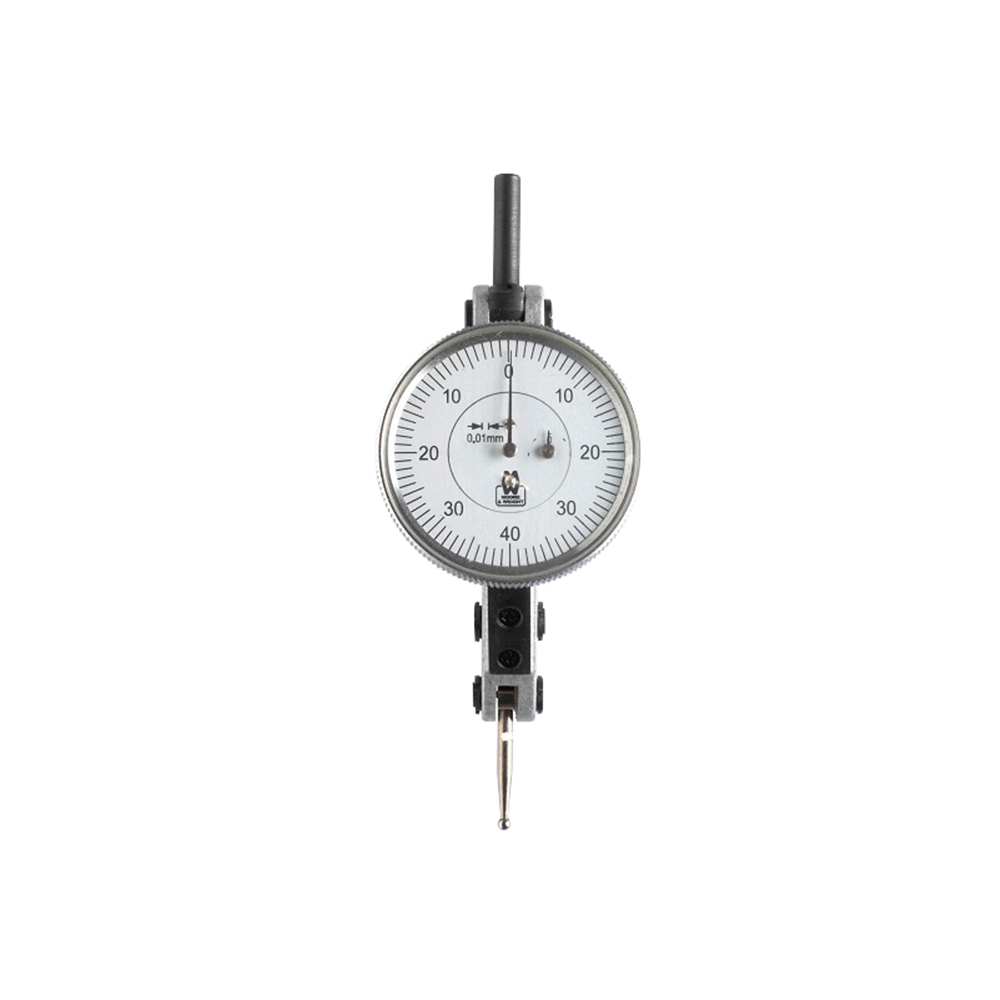

Moore & Wright Dial Test Indicator 400 Series
Talk to us at :
(65) 6749 9697
sales@lfc.com.sg
Moore & Wright Dial Test Indicator 400 Series are complies with standard: DIN 2270 Moore & Wright Dial Test Indicator 400 Series Features: Automatic reversal of measuring direction High precision fully jewelled bearings Rotating dial Two dovetail clamps Carbide points Long range - twice the range of most indicators (422 series only)
Moore & Wright Dial Test Indicator 400 Series are complies with standard: DIN 2270
Moore & Wright Dial Test Indicator 400 Series Features:
- Automatic reversal of measuring direction
- High precision fully jewelled bearings
- Rotating dial
- Two dovetail clamps
- Carbide points
- Long range - twice the range of most indicators (422 series only)
TECHNICAL SPECIFICATION
Moore & Wright Dial Test Indicator 400 Series
| Code No. | Range (mm) | Dial Reading | Dial Diameter (mm) | Graduation (mm) |
|---|---|---|---|---|
| MW420-03 | 0.8 | 0-40-0 | 25 | 0.01 |
| MW420-04 | 0.8 | 0-40-0 | 37 | 0.01 |
