Sylvac Measuring Stand for Digital Indicator – High Precision & Maximum Stability
Upgrade your measurement setup with the Sylvac Measuring Stand, a precision support system for digital indicators and probes. Expertly designed with premium materials and Swiss engineering, these stands offer unmatched stability, smooth adjustability, and consistent measurement repeatability.

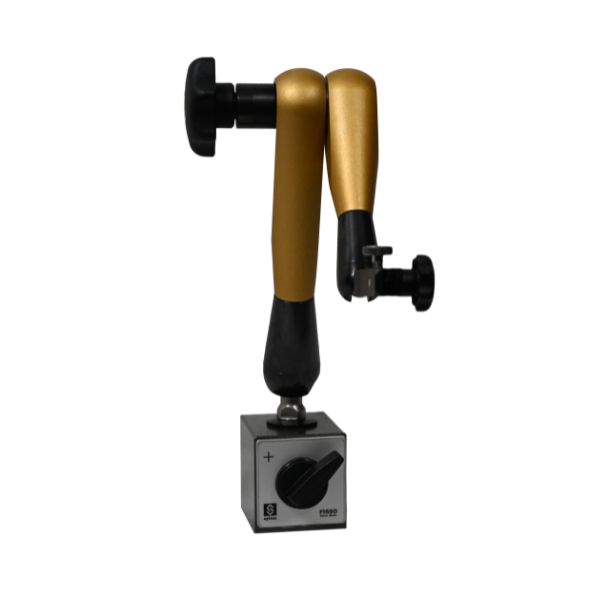

1. Magnetic Base Stand for Lever Indicator
Sylvac 908-1201
Key Features:
- High-quality imported product.
- Vertical rod Ø 16 mm and hinged horizontal rod Ø 12 mm.
- Maximum measuring height: 350 mm.
- Equipped with a magnetic base offering 80 kg of holding force.
- Clamping diameter: 8 mm.
- Gripping coefficient: 800N.
Benefits:
- Ultra-stable magnetic base for secure positioning.
- Perfect for high-repeatability measurements.
- Compatible with various lever-type indicators.
| 908-1201 | |
| Base | magnetic ¹ |
| Base dimensions AxBxH (mm) | 60x50x55 |
| Central locking | ⬤ |
| Column (mm) | – |
| Clamping dimension (mm) | Ø 8 |
| Dist. Column.-meas. point. C (mm) | – |
| Measuring range (mm) | 0 – 267 |
| Total height (mm) | 430 |
| Weight (kg) | 2.2 |
| Fine adjustment | ⬤ |
¹ Gripping coefficient : 800N
2. Stand with Ceramic Table for Comparators and Probes
Sylvac 808-1204
Key Features:
- Imported with industrial-grade specifications.
- Chrome steel vertical column Ø 25 mm for high stability.
- Clamping diameter: 8 mm.
- Maximum measuring height: 115 mm.
- Cast iron base with ceramic table (85 x 85 x 25 mm), grade XX.
Benefits:
- Wear-resistant, non-magnetic ceramic table ensures accurate results.
- Ideal for metrology labs and quality control applications.
| 808-1204 | 808-1205 | |
| Base | granit grade 00 | granit grade 00 |
| Base dimensions AxBxH (mm) | 300x210x60 | 300x210x60 |
| Central locking | – | – |
| Column (mm) | Steel Ø 35 | Steel Ø 35 |
| Clamping dimension (mm) | Ø 8 | Ø 25 |
| Dist. Column.-meas. point. C (mm) | 115 | 115 |
| Measuring range (mm) | 0 – 260 | 0 – 260 |
| Total height (mm) | 360 | 360 |
| Weight (kg) | 13.4 | 13.5 |
| Fine adjustment | ⬤ | ⬤ |

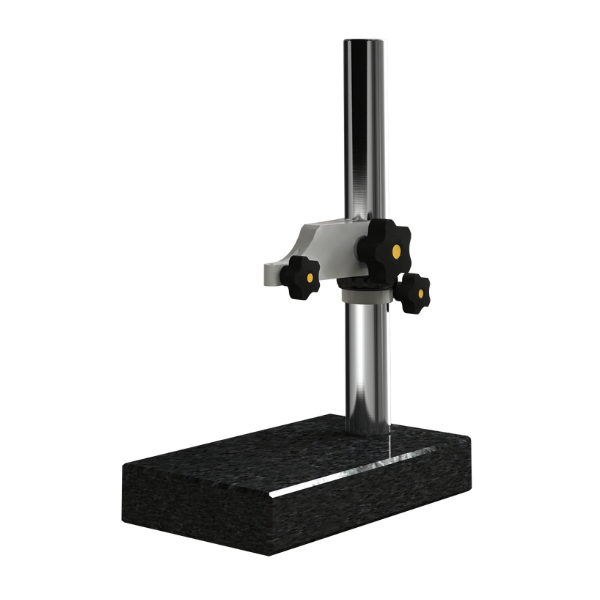

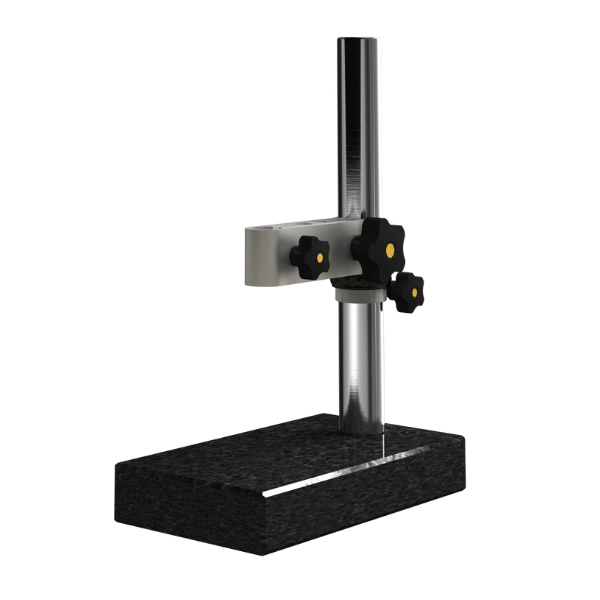

3. Sylvac Series 808 – Premium Stand for Digital Indicators and Probes
 |
 |
 |
| Sylvac 808-1206 | Sylvac 808-1203 | Sylvac 808-1202 |
Key Features:
- Made by Sylvac in Switzerland – premium quality assurance.
- Superior to most Asian-made stands in the market.
- Reinforced column Ø 25 or 35 mm with precision measuring arm.
- Clamping diameter: 8 mm and 25 mm (for S_Dial PRO dial gauges).
- Equipped with fine adjustment ring for precise vertical positioning.
- Grade 00 granite base – highly stable and vibration-resistant.
Benefits:
- Maximum measurement accuracy with minimal error.
- Perfect for industrial, laboratory, and professional metrology use.
| 808-1206 | 808-1207 | 808-1202 | 808-1203 | 808-1201 | |
| Base | granit grade 00 | granit grade 00 | granit grade 00 | granit grade 00 | granit grade 00 |
| Base dimensions AxBxH (mm) | 100X150X40 | 100X150X40 | 240x140x50 | 240x140x50 | 240x140x50 |
| Central locking | – | – | – | – | – |
| Column (mm) | Steel Ø 25 | Steel Ø 35 | Steel Ø 35 | Steel Ø 35 | Steel Ø 35 |
| Clamping dimension (mm) | Ø 8 | Ø 8 | Ø 25 | Ø 8 | Ø 8 |
| Dist. Column.-meas. point. C (mm) | 70 | 70 | 115 | 70 | 115 |
| Measuring range (mm) | 0 – 190 | 0 – 260 | 0 – 260 | 0 – 260 | 0 – 260 |
| Total height (mm) | 270 | 340 | 340 | 340 | 340 |
| Weight (kg) | 2.9 | 4.3 | 6.6 | 6.5 | 6.6 |
| Fine adjustment | ⬤ | ⬤ | ⬤ | ⬤ | ⬤ |
