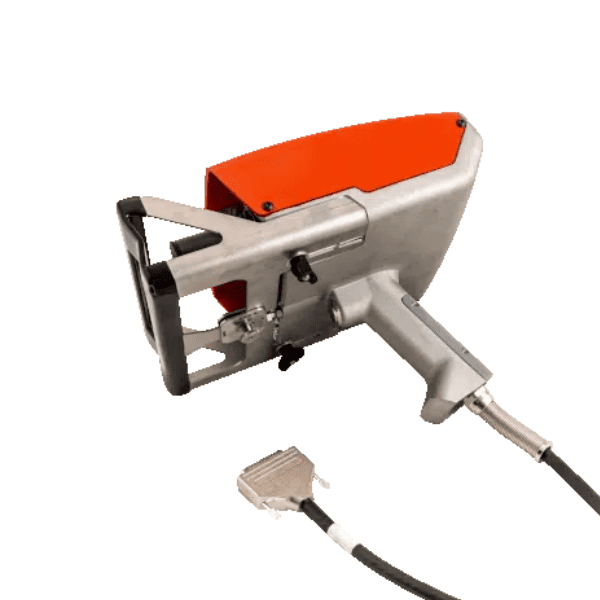

SIC Marking e10 p123 Portable Marking Gun

Talk to us at :

(65) 6749 9697

sales@lfc.com.sg

The p123 portable dot peen marking machine is ideal for marking large and difficult-to-access parts. The specially designed front plate arches along the width to optimize marking on both flat and cylindrical surfaces. Thanks to the solenoid actuated marking pin, the p123 requires minimal maintenance and no pneumatic system. Capable of marking any material (including plastics and metals up to 62HRC), this portable engraving machine maintains a consistent quality and precise accuracy.  Its rugged cast aluminum boxy, ABS cover, and stainless steel front plate combine to make the p123 a powerful, lightweight, and trusted tool across a multitude of sectors. Marks any material Robust and powerful Superior Performance Low Cost Ownership Stability V-Shaped Front with Anti-Slip Surface Robotic cable 7.5m (up to 15m available)

The p123 portable dot peen marking machine is ideal for marking large and difficult-to-access parts. The specially designed front plate arches along the width to optimize marking on both flat and cylindrical surfaces. Thanks to the solenoid actuated marking pin, the p123 requires minimal maintenance and no pneumatic system. Capable of marking any material (including plastics and metals up to 62HRC), this portable engraving machine maintains a consistent quality and precise accuracy.

Its rugged cast aluminum boxy, ABS cover, and stainless steel front plate combine to make the p123 a powerful, lightweight, and trusted tool across a multitude of sectors.

  • Marks any material
  • Robust and powerful
  • Superior Performance
  • Low Cost Ownership
  • Stability V-Shaped Front with Anti-Slip Surface
  • Robotic cable 7.5m (up to 15m available)

TECHNICAL SPECIFICATION

Marking Window:

120 x 25 mm or 120 x 40 mm

Dimensions:

277 x 207 x 218 mm

Weight:

4.1 kg

Robotic Cable:

7.5m (up to 15m available)

Stylus:

Carbide 60 mm

Stability

V-Shaped Front with Anti-Slip Surface

Setup Positioning:

4 Preset Positions



ELECTRONIC FEATURES

The e10 controller provides its operator with a direct and easy-to-use interface. Its large graphic display and membrane-protected QWERTY keyboard make it perfect for use in industrial environments. Because the control box does not have any openings or ventilation, its interior electrical components are protected from harsh elements such as water, chemicals, dust, and material fragments.

Marking files can be up/downloaded from a PC to the controller using a USB key, or entered and edited directly on the machine. The e10's (included) comprehensive software package allows for linear, angular, radial, and mirror image marking, and an optional booster card can be used for deep marking. An additional 3rd and 4th axis circuit board can be installed to control a motorized column and rotary axis. The software package incorporates self-diagnostic and machine history functions, making it a "smart" user friendly machine.

Dimensions:

322 x 380 x 112 mm

Weight:

5 kg

LCD Screen Resolution:

480x272 p.

Keyboard:

QWERTY-Integrated, Membrane Overlay

Power:

300 watt

Power Supply:

Single Phase, 85 to 260VAC, 50-60Hz

Number of Controlled Axis:

2 (3 and 4 axis available)

Card Options:

Booster (deep marking) and Ethernet (communication)

USB Port:

Transfer of Marking Files
