Sylvac S_Dial PRO Smart – High-Precision Digital Indicator with Smart Connectivity The Sylvac S_Dial PRO Smart is a high-precision digital indicator designed for accurate and reliable dimensional measurements. With advanced resolution, robust construction, and smart features, this indicator is ideal for integration into jigs, custom fixtures, and measurement systems in various industrial settings. Key Features of Sylvac S_Dial PRO Smart 1. Exceptional Accuracy Across Full Measuring Range High-resolution display with 0.0001 mm resolution. Tolerance status indication directly on the screen. Measurement error less than 1.2 μm over a 50 mm range. 2. Flexible Power & Data Options Built-in Bluetooth® connectivity and proximity/power outputs. Operates without batteries when connected via cable. Battery life up to 2 years for long-term wireless operation. 3. Durable & Ergonomic Design Rugged housing with Ø59.5 mm diameter, 270° rotatable display. IP54 protection for resistance against dust and splash water. 4. Customizable Measuring Options Available in different measuring ranges: 25 mm, 50 mm, and 100 mm. Choose from ø8 mm or ø25 mm clamping stems (depending on model) for various applications. 5. User-Friendly with Versatile Functions Full function set: MIN / MAX / DELTA. Central button can be programmed with a favorite function. Available in standard pressure or low-pressure versions (without return spring) for vertical use.

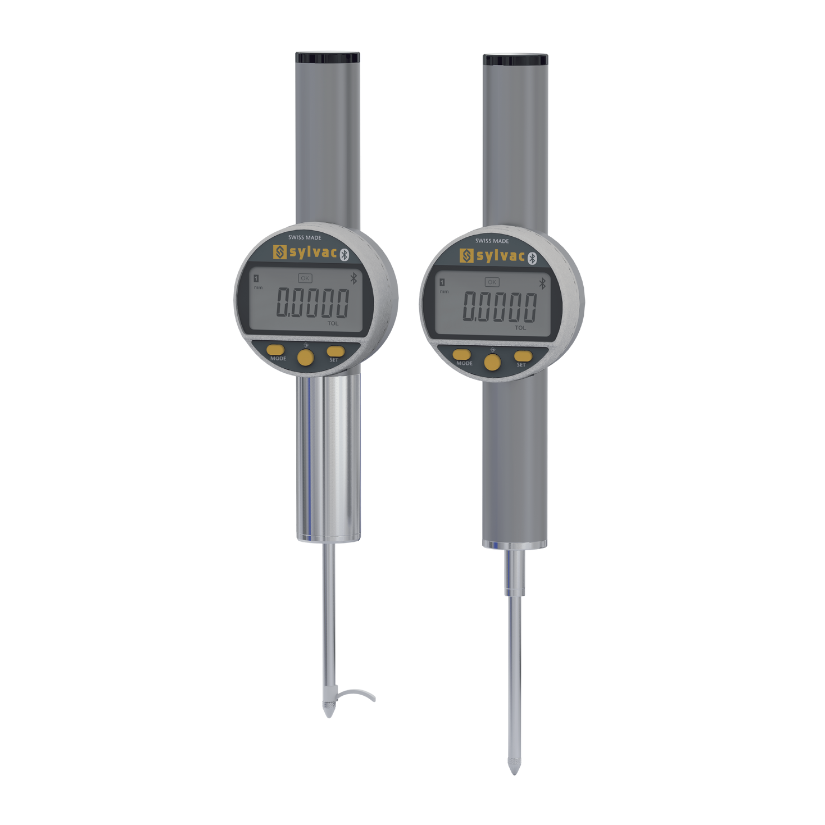

Sylvac S_Dial PRO Smart – High-Precision Digital Indicator with Smart Connectivity

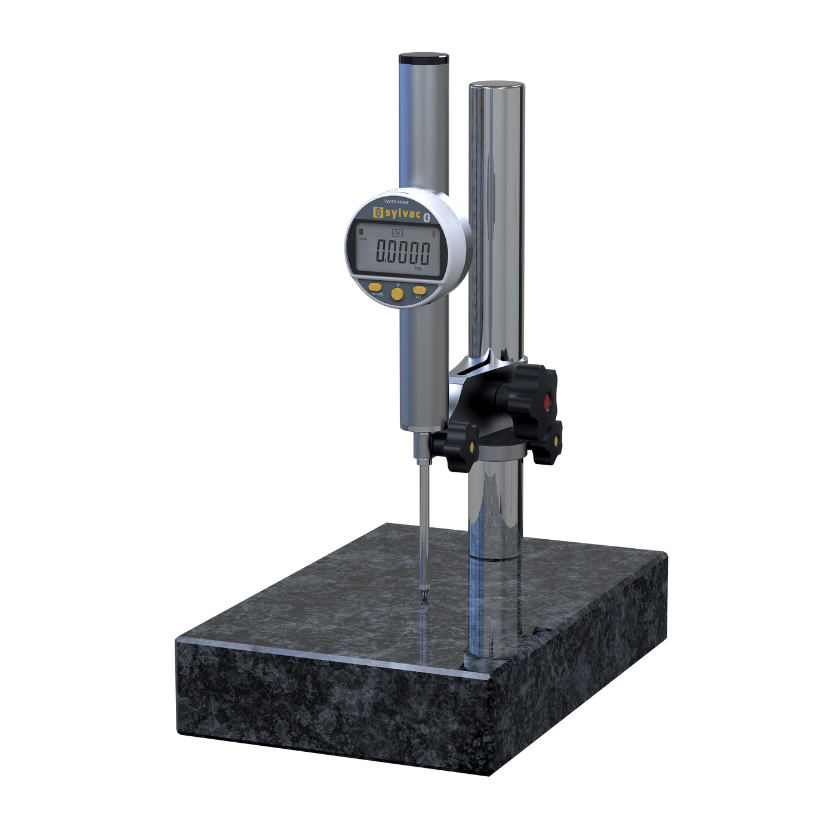

The Sylvac S_Dial PRO Smart is a high-precision digital indicator designed for accurate and reliable dimensional measurements. With advanced resolution, robust construction, and smart features, this indicator is ideal for integration into jigs, custom fixtures, and measurement systems in various industrial settings.
 |
 |
Key Features of Sylvac S_Dial PRO Smart
1. Exceptional Accuracy Across Full Measuring Range
-
High-resolution display with 0.0001 mm resolution.
-
Tolerance status indication directly on the screen.
-
Measurement error less than 1.2 μm over a 50 mm range.
2. Flexible Power & Data Options
-
Built-in Bluetooth® connectivity and proximity/power outputs.
-
Operates without batteries when connected via cable.
-
Battery life up to 2 years for long-term wireless operation.
3. Durable & Ergonomic Design
-
Rugged housing with Ø59.5 mm diameter, 270° rotatable display.
-
IP54 protection for resistance against dust and splash water.
4. Customizable Measuring Options
-
Available in different measuring ranges: 25 mm, 50 mm, and 100 mm.
-
Choose from ø8 mm or ø25 mm clamping stems (depending on model) for various applications.
5. User-Friendly with Versatile Functions
-
Full function set: MIN / MAX / DELTA.
-
Central button can be programmed with a favorite function.
-
Available in standard pressure or low-pressure versions (without return spring) for vertical use.
Overview
Sylvac Digital Indicator S_Dial PRO BASIC
Sylvac Digital Indicator S_Dial PRO BASIC is developed and manufactured in Switzerland. Sylvac Digital Indicator S_Dial Work PLC is the world's first indicator covered with limited lifetime warranty to assure your excellence and productivity.
TECHNICAL SPECIFICATION
Sylvac Digital Indicator S_Dial PRO Smart Dimensions:
Sylvac Digital Indicator S_Dial PRO Smart Ordering Guide:
| 805-8501 | 805-8502 | 805-8601 | 805-8701 | 805-8602 | 805-8702 | 805-8661 | ||
| Measuring range | mm | 25 | 50 | 100 | ||||
| Resolution | mm | 0.0001 | ||||||
| Max. Error fe | µm | 1.0 | 1.2 | 1.8 | ||||
| Repeatability | µm | 0.2 | ||||||
| Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ Power to RS232 ¹ Power to USB ¹ Proximity to RS232 ¹ Proximity to USB ¹ |
|||||||
| Programmable by PC | • | |||||||
| Clamping | ∅8h6 | ∅25g7 | ∅8h6 | |||||
| Spring | • | 2 | • | 2 | • | 2 | • | |
| Measuring force | N | 0.75 - 1.00 2) | 0.30 3) | 0.85 - 1.2 3) | 0.40 3) | 0.85 - 1.20 3) | 0.40 3) | 0.90 - 1.30 3) |
| IP rating | IP51 | |||||||
| Standard functions (customisable by PC) | mm.inch, ref I/II, preset (max 99.9999) min/max/delta, tolerances, resolution, measuring direction, multiplier,automatic extinction/manual, keylock | |||||||
¹ Device: PC, display unit, …
² Model without spring : Constant measuring force, use only in a vertical position
³ The values agree within ± 20% (vertical down, measuring rod outgoing)
