Sylvac Digital Test Indicator S_Dial TEST Smart

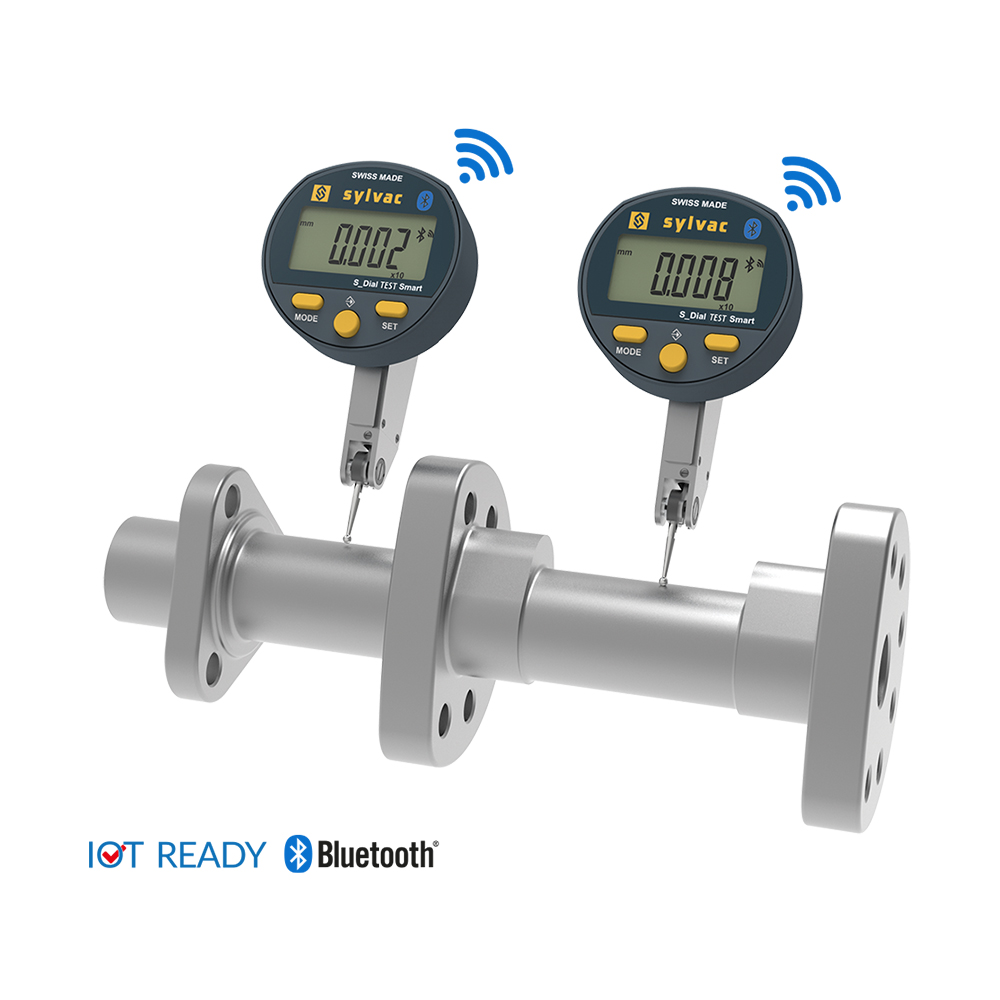

The Sylvac S_Dial TEST Smart is a high-quality digital test indicator equipped with integrated Bluetooth® technology, designed for precision measurements like checking flatness and roundness. Perfectly suited for modern industrial applications, it offers outstanding accuracy, user-friendliness, and exceptional durability.
Key Features of S_Dial TEST Smart
1. Portability & Versatility
Featuring a compact Ø 45 mm housing and a 270° rotatable display, this test indicator ensures convenient measurements from any angle. Easily adaptable to jigs, custom fixtures, and various measuring setups.
2. Wireless Data Acquisition
Integrated Bluetooth® allows for fast, wireless data transmission—reducing errors and increasing productivity. RS232 data output with external power is also supported for added versatility.
3. Unmatched Precision & Accuracy
With a digital resolution of 0.001 mm and a clear analogue scale, this indicator delivers detailed and repeatable results you can trust, even in demanding environments.
4. User-Friendly Interface
Designed for easy setup and use, the intuitive controls and interchangeable components save time and effort. The 270° rotatable display enhances visibility. Additional features include auto power-off and a customizable favorite button.
5. Stylus Options & Measuring Range
Available in three versions:
- 12 mm stylus with 0.8 mm measuring range
- 36 mm stylus with 2.0 mm measuring range
- Combined version with both stylus types
The M1.4 stylus with a Ø 2 mm tungsten carbide ball is swivel-mounted and replaceable for increased flexibility.
6. Durable & Resistant Design
Built for tough conditions, the indicator is water- and coolant-resistant with an IP54 protection rating. The innovative gearless mechanical design eliminates hysteresis error for consistently reliable readings.
Overview
TECHNICAL SPECIFICATION
Sylvac Digital Test Indicator S_Dial TEST Smart Dimensions:
Sylvac Digital Test Indicator S_Dial TEST Smart Ordering Guide:
| 805-4321 | 805-4322 | 805-4323 | |
| Measurement capacity (mm) | 0.8 | 2.0 | 0.8 / 2.0 |
| Stylus length L (mm) | 12.5 | 36.5 | 12.5 / 36.5 |
| Accuracy fe (α=0°) (µm) | 3 | 8 | 3 / 8 |
| Total accuracy fges (α=0°) (µm) | 4 | 10 | 4 / 10 |
| Reversibility fu (µm) | 2 | 3 | 2 / 3 |
| Resolution | 0.001 mm / .00005 IN | ||
| Repeatability fw (µm) | 1 | ||
| Measuring force (N) | 0.15 | 0.06 | 0.15 / 0.06 |
| Friction on probe orientation (N) | 4 | 1.6 | 4 / 1.6 |
| Weight (g) | 70 | ||
| Protection rating according to IEC 60529 | IP54 | ||
| Connection type (instrument to device) | Bluetooth® Wireless Technology ¹ Power to RS232 ¹ Power to USB ¹ Adaptator RS – USB ¹ |
||
| Zero setting | ⬤ | ||
| min / max / delta display | ⬤ | ||
| Analog display | ⬤ | ||
| Selection of resolution | ⬤ | ||
| Preset (0.01 resolution) | ±99.999 mm / ±3.99995 IN (±999.99 mm / ±39.9995 IN) | ||
¹ Device: PC, display unit, …
