If you want to find out more about

Taipu Tapping Machine TP2000 Series

Talk to us at :

(65) 6749 9697

sales@lfc.com.sg

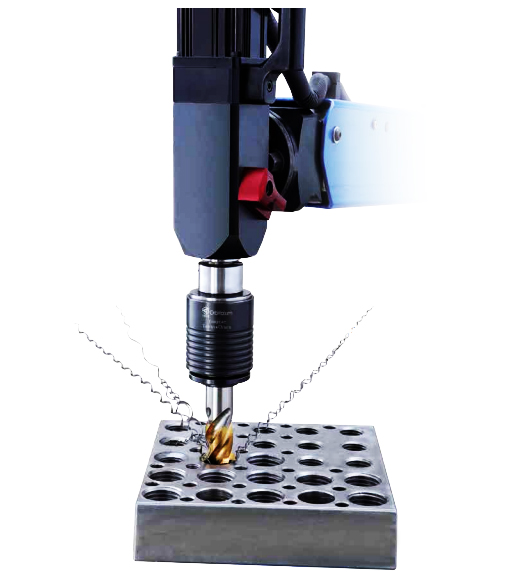

Taipu Tapping Machine TP2000 Series are powered by durable electric motors. The process of cutting or forming threads with its DC motors allows you to easily do programmable torque, consistent speed and flexible tapping by its standard configuration of floating model. Wide working scope is supported by its 2000 mm of wide working area. With tapping capacity from M4 to M30, the practical tapping set will surely improve the versatility needed in your factory floor. Compared to air tapping machine, the Taipu's electric powered Tapping Machine TP2000 Series demands lesser fatigue to be operated by your operator as the machine itself works with lesser vibrations and allows simulated and programmable tapping. Furthermore, its fluid locking arm mechanism will surely enable you to work with busy pace without the risk of swarf and metal chips cuts the air hose as in pneumatics. Your operator will find its Quick-change chuck with Φ31 mm is practical as it only need 3 to 5 seconds to initiate a new tool. Depends on the cutting tools application, the new Taipu Tapping Machine TP2000 Series will deliver optimum performance at the speed of 150 R.P.M with proper combination of tables and working bench. Taipu electric Tapping Machine TP1800 Series will fare you a better return on investment especially when you are working with routine on various steel, iron, copper, aluminum, plastic and other materials as well. Taipu Air Tapping Machine TP2000 Series Features: Applicable as a Vertical & horizontal Pneumatic Tapping Machine Optimized for repetitive & fixed vertical angle with manual control & lockings Planetary 2 speed gear for efficient powertrain Programmable with capacity from M4 to M24 and M40 Quick-change chuck with Φ31 mm Stable speed up to 150 R.P.M Working radius of 2000 mm Compact form factor with light arms to deliver suficient power of 1.2 KW Can also be ordered with German made tapping bit & colletes

Taipu Tapping Machine TP2000 Series are powered by durable electric motors. The process of cutting or forming threads with its DC motors allows you to easily do programmable torque, consistent speed and flexible tapping by its standard configuration of floating model. Wide working scope is supported by its 2000 mm of wide working area. With tapping capacity from M4 to M30, the practical tapping set will surely improve the versatility needed in your factory floor.

Compared to air tapping machine, the Taipu's electric powered Tapping Machine TP2000 Series demands lesser fatigue to be operated by your operator as the machine itself works with lesser vibrations and allows simulated and programmable tapping. Furthermore, its fluid locking arm mechanism will surely enable you to work with busy pace without the risk of swarf and metal chips cuts the air hose as in pneumatics. Your operator will find its Quick-change chuck with Φ31 mm is practical as it only need 3 to 5 seconds to initiate a new tool.

Depends on the cutting tools application, the new Taipu Tapping Machine TP2000 Series will deliver optimum performance at the speed of 150 R.P.M with proper combination of tables and working bench. Taipu electric Tapping Machine TP1800 Series will fare you a better return on investment especially when you are working with routine on various steel, iron, copper, aluminum, plastic and other materials as well.

Taipu Air Tapping Machine TP2000 Series Features:

  • Applicable as a Vertical & horizontal Pneumatic Tapping Machine
  • Optimized for repetitive & fixed vertical angle with manual control & lockings
  • Planetary 2 speed gear for efficient powertrain
  • Programmable with capacity from M4 to M24 and M40
  • Quick-change chuck with Φ31 mm
  • Stable speed up to 150 R.P.M
  • Working radius of 2000 mm
  • Compact form factor with light arms to deliver suficient power of 1.2 KW
  • Can also be ordered with German made tapping bit & colletes

TECHNICAL SPECIFICATION

Taipu Air Tapping Machine Series Schematic Dimension:

Taipu Air Tapping Machine TP2000 Series Ordering Guide:


Model No. TP2000-24A(U) TP2000-30A(U)
Tapping Capacity M4-M24 M4-M30
Working Radius (mm) 2000 2000
Chuck Size (mm) Φ31 Φ31
Power (KW) 1.2 1.2
Speed (r.p.m) 0-150 0-100
N/W (kgs) G/W (kgs) 42 45
50 55
Package size(mm) 675×450×250 675×450×250

Note: "U" stand for universal tapping, "D" stand for model with two speed
